Door Access Control System Installation Singapore
Door Access Control System
Fingerprint Entry System
ZKTeco SF300
- 1,500 Fingerprint Capacity
- 5,000 (EM/IC Card) (Optional) Card Capacity
- 2.8 inch resistive touch screen
- 105 x 105 x 34mm
8M-FP
- 500 Fingerprint Capacity
- 500 Card Capacity
- ABS with epoxy filled backing
- 140mm x 70mm x 16mm
Suprema BioLite N2
- 10,000 Fingerprint, Card, Pin Capacity
- Supports NFC and Bluetooth
- Dual Frequency, Multi-Smartcard Reader
- IP67
- 58mm x 190mm x 44mm
Face Recognition System
HIK DS-K1T331
- Max.1000 faces capacity
- 3.97-inch LCD touch screen
- 2 Mega pixel wide-angle lens
- 120 mm × 110 mm × 23 mm
HIK DS-K1T341AMF
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- 4.3-inch LCD touch screen
- 2 Mega pixel wide-angle lens
- Duration ＜ 0.2 s/User
- IP65
- Two-way audio with client software, indoor station, and main station
- 172.5 mm × 83.2 mm × 22.7 mm
Dahua ASI6214S-D
- 6,000 Face Capacity, 10,000 Card Capacity, 300,000 Record Capacity
- 4.3" LCD touch screen
- 2-MP CMOS HD dual-lens camera
- 180.1 mm × 90.1 mm × 27.0 mm
EM Lock
GEM 600
- Holding Force: 600lbs
- Aluminum anodized casing (US28)
- Optional Brackets for Narrow Frame/Outswing Door, Inswing Door, Glass Door
- No residual magnetism
- 250mm x 44mm x 26mm
Ebelco 600
- Up to 600 lbs (272 kg)
- Cosmeticize Anodized Aluminum Casing
- Full Range of Optional Brackets
- Anti Residual Magnetism Kick Off Button
- 250mm x 42mm x 25mm
Drop Bolt Lock
GEM EB-200NLW
- Versatile Installation: Suitable for both horizontal and vertical setups.
- Works with outswing doors, inswing doors, and double-action doors (swing both inwards and outwards).
- Long-life solenoids, guaranteed to operate 500,000 times.
- Adjustable Relock Time Delay: Options for 0, 3, 6, or 9 seconds.
- Dimensions:
- Lock: 203mm x 41.5mm x 32mm
- Catch: 100mm x 28mm x 25mm
GEM Dropbolts
- Can be fitted to a full glass door and glass frame
- Full Range of Optional Brackets
Viro Lock
V9083 with push button
- Autogate System Integration:
- Connects to autogate system seamlessly.
- Remote control with 2 buttons:
- 1 button for controlling the main gate.
- 1 button for controlling the V9083 unit mounted on the side gate.
- Can be remotely controlled via the intercom system.
- Construction:
- Case and Cover: One-piece galvanized steel with handle.
- Push Button: Brass, with nylon cylinder ring nut/push button.
- Key Features:
- Turn key from the inside to:
- Block or activate the push button function.
- Block or activate the "dogging device" function (keeps the lock always open, if required)
- Lock dimensions: 127.5mm x 103.5mm
V97 with push button
- Autogate System Integration:
- Connects to autogate system seamlessly.
- Remote control with 2 buttons:
- 1 button for controlling the main gate.
- 1 button for controlling the V97 unit mounted on the side gate.
- Can be remotely controlled via the intercom system.
- Construction:
- Case and Cover: One-piece galvanized steel with anthracite metallic paint.
- Handle: Nylon
- Key Features:
- If the key is turned from the inside, it is possible to:
- Block or activate the button function;
- Block or activate the "dogging device" function (possibility to keep the lock always open, if required);
- Lock dimensions: 127.5mm x 103.5mm
Door Release Button
Indoor Button
Outdoor Button
.png)
Our installations
Face Recognition Terminal
Please note: Red dots visible in images are due to the camera infared and are only noticeable when captured in photos.
Modes of authentication: Face, Fingerprint, Pin and Card
HIK Face Recognition Terminal
HIK Face Recognition Terminal

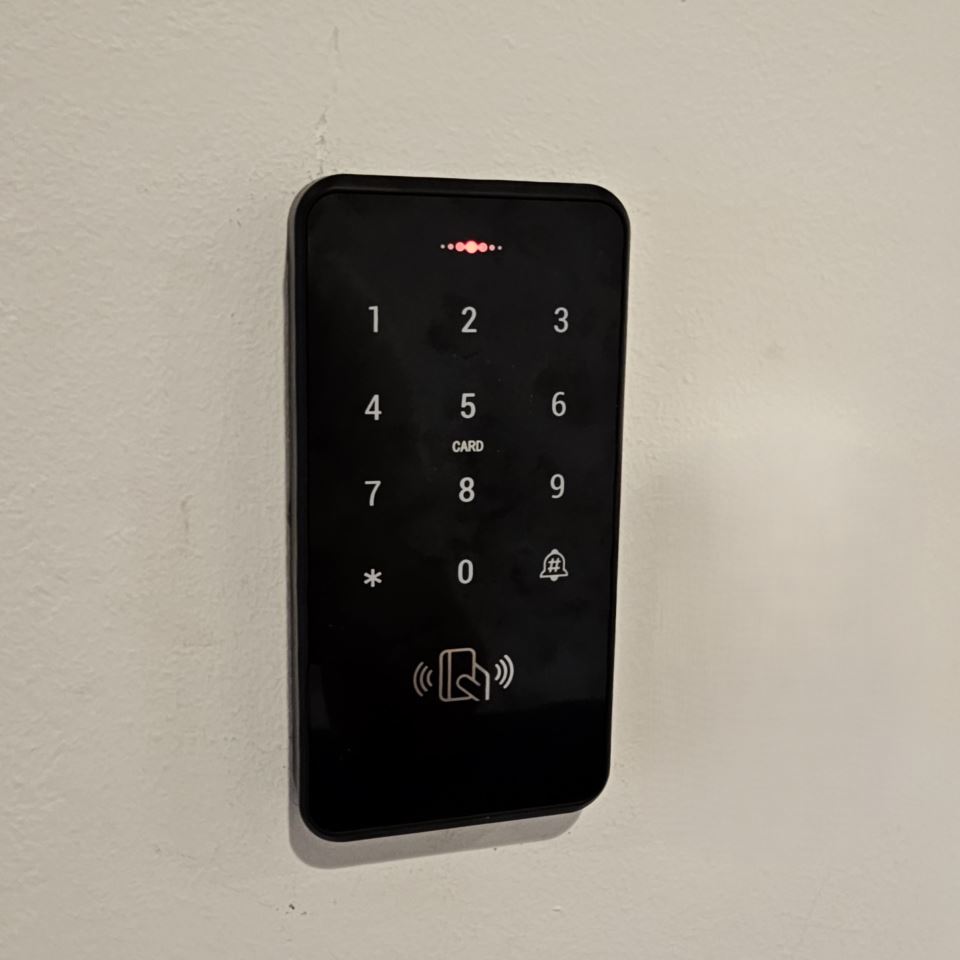

8m AC1000 Reader
Modes of authentication: Pin and Card

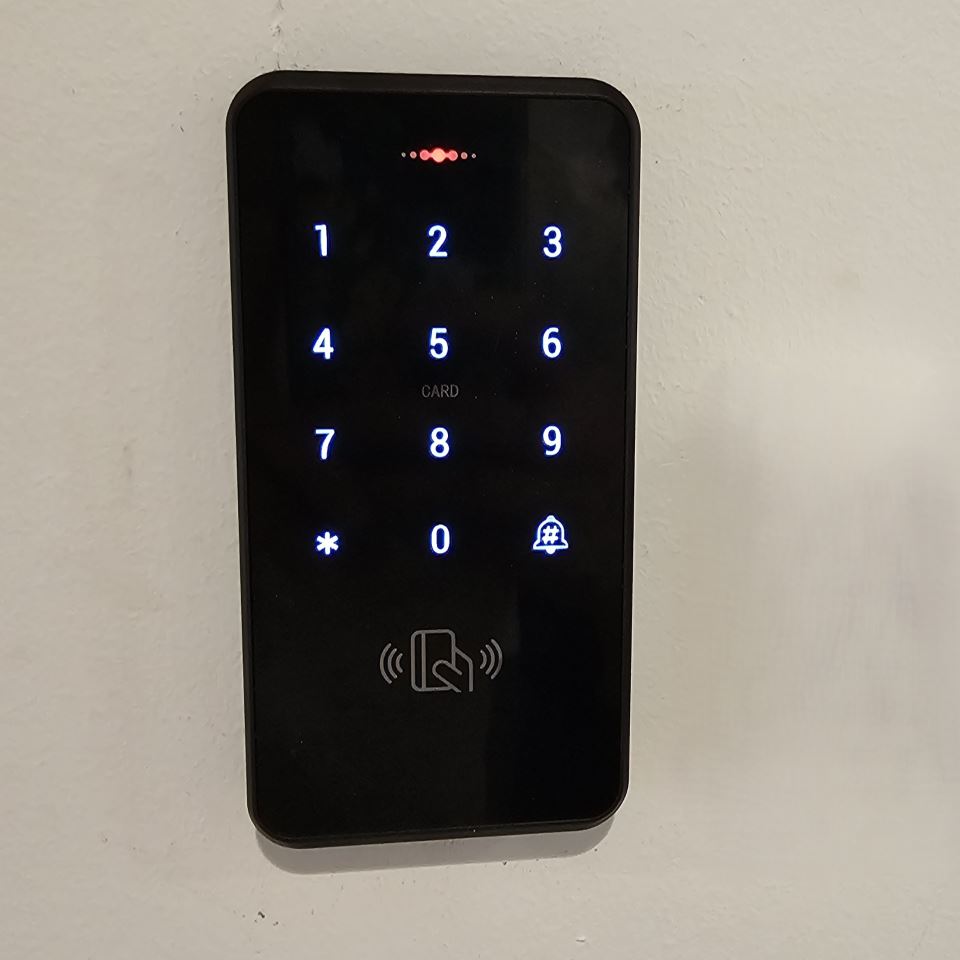

8M AC1000 Light on
8M AC1000 Light off
Electromagnetic EM Lock (Indoor)
EM-Lock View from Outside
EM-Lock View from Outside
EM-Lock View from Inside
EM-Lock Closed
EM-Lock
EM-Lock Armature Plate
Viro Lock
Viro Lock
Viro Lock

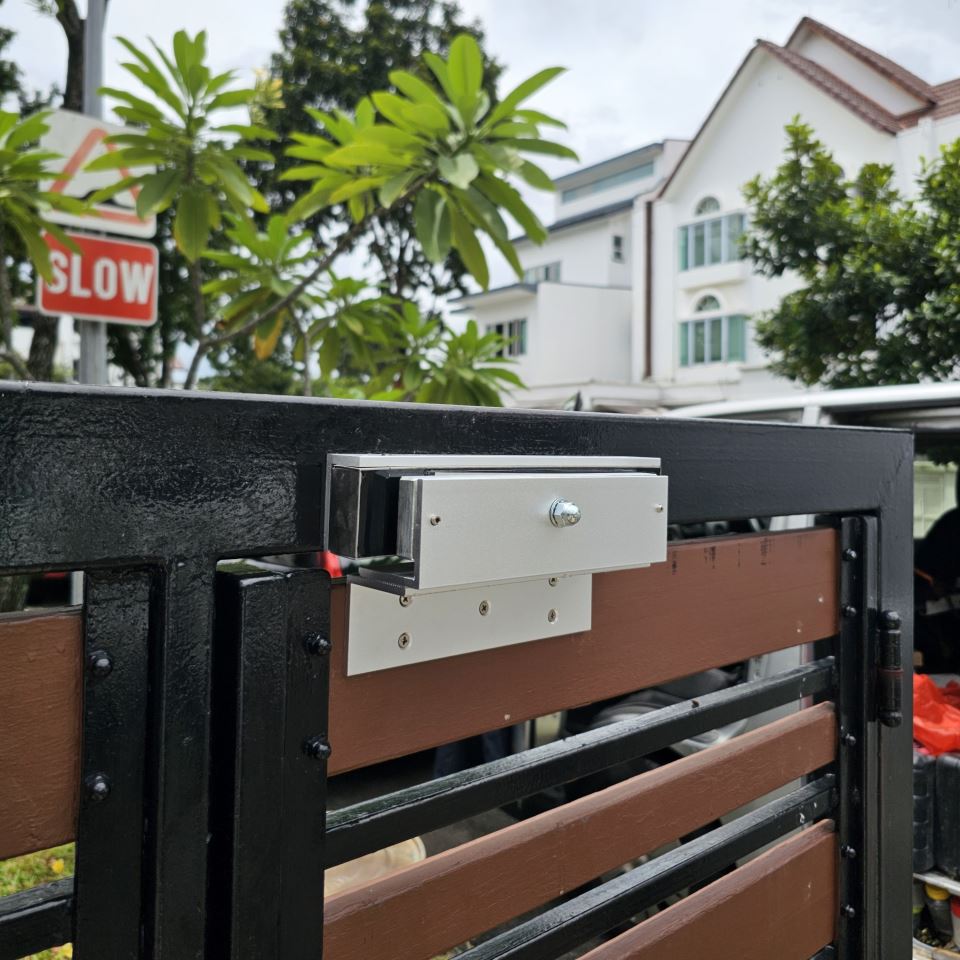

Outdoor EM lock
Outdoor EM lock
Door Release Exit Button
Door Release Exit Button
Contactless Door Release and Breakglass
Previous: CCTV System Next: Barrier Gate System
Interested in this product?
Consult with our expert
ENQUIRE
At 8M Alarm System, we specialize in providing top-tier door access control system installation services in Singapore, ensuring secure and efficient access management for residential, commercial, and industrial properties. With our advanced solutions, you can enjoy enhanced security, streamlined operations, and peace of mind. Our door access control systems in Singapore are designed to offer robust protection by regulating entry to your premises. Featuring cutting-edge technologies such as biometric scanners, RFID card readers, PIN-based keypads, and mobile access solutions, our systems provide flexibility and convenience while ensuring only authorized individuals gain access. When it comes to door access control system installation, 8M Alarm System takes a meticulous approach. From assessing your property’s unique requirements to recommending and deploying the ideal system, our experienced technicians ensure a flawless setup. Our solutions can be seamlessly integrated with existing security systems, including CCTV and alarm systems, providing a comprehensive security framework for your property. As a leading provider of door access control systems in Singapore, we emphasize quality, reliability, and user-friendliness. Our systems are scalable, making them suitable for properties of all sizes—from small offices to large commercial complexes. With features like real-time monitoring, remote access control, and detailed access logs, our solutions empower you to manage security effectively. Contact 8M Alarm System for professional door access control system installation and experience the perfect combination of advanced technology and exceptional service. Contact us today to discuss your requirements and secure your property with Singapore's trusted experts in access control solutions.
Leading Door Access Control System in Singapore
At 8M Alarm System, we specialize in providing a robust, scalable, and Door Access Control System for Singapore’s commercial and residential sectors. Our Door Access Control System delivers secure, reliable, and user‑friendly access management — all tailored to each client’s unique needs .
Why Choose Our Door Access Control System?
1. High Reliability & Quality
We emphasize quality and reliability in every Door Access Control System we install, ensuring uninterrupted access management and peace of mind.
2. User‑Friendly Management
Our intuitive Door Access Control System interfaces simplify credential issuance, permission settings, and audit tracking. Ideal for offices, condominiums, and educational institutions.
3. Scalable Solutions
From single-door setups to multi-door enterprise installations, our Door Access Control System scales effortlessly as your premises grow.
Core Features of Our Door Access Control System
- Versatile Credential Options – Support for RFID cards, PIN pads, fingerprint readers, and mobile access.
- Centralized Control – One platform to manage users, schedules, and access logs.
- Seamless Integration – Easily pairs with CCTV, alarm systems, and intercoms for unified security management .
Applications
Our Door Access Control System is perfect for:
- Corporate offices seeking secure entry
- Condominiums needing managed per‑door access
- Educational institutes controlling access to labs or offices
- Retail and F&B outlets optimizing staff movement
Our End‑to‑End Approach
With over three decades of experience, 8M Alarm System offers the complete package: system design, hardware (like controllers and readers), professional installation, and ongoing maintenance. We are a licensed security service provider committed to delivering reliable Door Access Control System solutions tailored to your exact requirements.
