Your Trusted Singapore Specialist for FAAC Autogate Systems

For over 40 years, 8M Alarm System has been a leading installer of high-performance FAAC autogate systems in Singapore. We specialize in the installation, maintenance, and expert repair of a wide range of FAAC models, ensuring robust security and reliable operation for everything from residential driveways to high-traffic industrial sites.

Whether you need a brand-new installation or expert service for an existing motor, our team has the experience to deliver a solution you can trust.

Our FAAC Installation & Service Expertise

We work with the most reliable and popular FAAC models to provide the perfect solution for any property.

Heavy-Duty Sliding Gate Motors

FAAC C851 – High-Speed Industrial Sliding Gate Motor

For sites where opening time matters, the FAAC C851 is a high-speed industrial sliding gate operator with an adjustable leaf speed of 20 to 40 m/min. Unlike a conventional fixed-speed sliding motor, its integrated inverter allows the running speed to be configured to suit the gate and the operating requirements of the site.

FAAC C851 high-speed sliding gate operator installed in Singapore by 8M Alarm System FAAC C851 High-Speed Sliding Gate Operator
FAAC C851 Key Specifications
Application High-speed industrial sliding gates
Adjustable Gate Speed 20–40 m/min
Maximum Gate Leaf Weight Up to 1,800 kg
Maximum Gate Leaf Width Up to 20 m
Power Supply 220–240V AC, 50/60Hz
Motor 1.1 kW three-phase motor controlled by the integrated frequency inverter
Use Frequency 100% duty at 25°C
Control Built-in E850S control board with frequency inverter
Protection Class IP54

The C851 also includes an electric brake, magnetic end-of-travel limit switches and an external manual release that can be operated without removing the motor cover.

Why Use a High-Speed Sliding Gate Motor?

For a long sliding gate, the difference in travelling speed can have a major effect on how long the entrance remains open. The C851 is particularly useful for warehouses, industrial compounds and other busy vehicle entrances where a faster opening cycle can reduce waiting time without moving to a barrier-gate arrangement.

However, we do not automatically programme every C851 to its maximum speed. The correct setting depends on the gate weight and length, wheel and track condition, braking distance, safety devices and how the entrance is used. The objective is to achieve the required access speed while keeping the gate movement controlled and suitable for the site.

FAAC C851 Speed Demonstrations: 20, 30 & 40 m/min

The same C851 operator can be configured at different running speeds. The videos below demonstrate the progression from 20 m/min to 30 m/min and, at maximum setting, 40 m/min.

FAAC C851 at 20 m/min

The lower end of the C851's rated adjustable speed range, already providing fast travel for long industrial sliding gates.

FAAC C851 at 30 m/min

A faster configuration showing how the inverter-controlled C851 can be tuned for sites where shorter vehicle waiting time is important.

FAAC C851 at 40 m/min – Speed & Stopping Demonstration

Maximum-speed demonstration of the C851 at its rated top leaf speed of 40 m/min, also showing the gate's controlled deceleration and stopping response at high speed.

Important: The speeds shown are configuration examples from a completed installation. Suitable operating speed must be assessed for each gate and site; a 40 m/min setting is not appropriate for every installation.

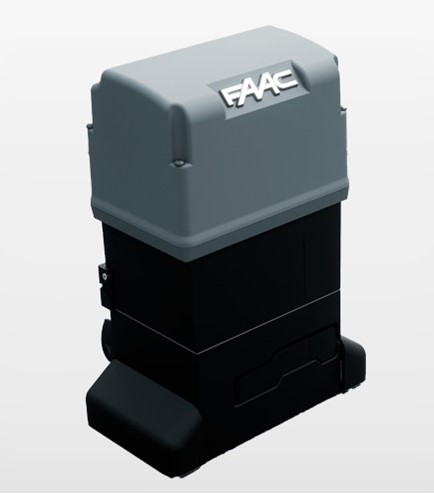

FAAC 844 Sliding Gate Motor Singapore - 1800kg max load

FAAC 844

Catalog IconDownload Specifications

The ideal workhorse for industrial sites, factories, and condominiums requiring absolute reliability. The FAAC 844 is designed for high-traffic environments and can handle heavy gates up to 1,800 kg with smooth, consistent performance.

FAAC 746 Sliding Gate Motor Singapore - 600kg max load

FAAC 746

Catalog IconDownload Specifications

A versatile and robust choice for commercial properties and large residential sliding gates up to 600 kg. The FAAC 746 combines a compact design with the power and durability needed for frequent use.

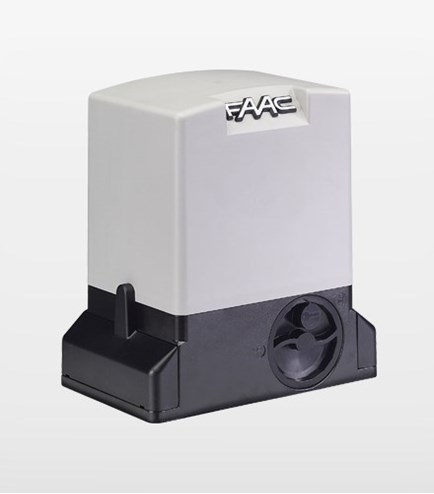

FAAC 740 and 741 legacy autogate motors

FAAC 740 / 741 Models

Catalog IconDownload Specifications

While we focus on installing the latest models, our experienced technicians also provide expert repair and maintenance for the dependable FAAC 740 and 741 systems, ensuring they continue to operate safely and effectively for years to come.

FAAC 844 vs. FAAC 746: Which One Do You Need?

While they may look similar, the FAAC 844 and 746 are designed for very different applications. Here’s a quick guide to help you choose:

Feature FAAC 844 FAAC 746
Ideal Use Case Industrial/ High-Traffic Commercial & Large Residential Commercial & Residential
Max Gate Weight Up to 1,800 kg (3-Phase up to 2,200 kg) Up to 600 kg
Typical Max Gate Length Up to 50m Typically up to 4m (depending on gate weight)
Motor Type Heavy-duty for constant use Robust and versatile

Expertise with Legacy FAAC Models

The FAAC brand has evolved over the years. Before the current modern design, the 844 and 746 models had their own unique look. Our team has years of hands-on experience installing and servicing these reliable older models, and we continue to provide expert maintenance and repair to keep them running perfectly. This deep product knowledge is what makes us a trusted partner for any FAAC system, old or new.

Older design of the FAAC 844 motor
Previous FAAC 844 Design

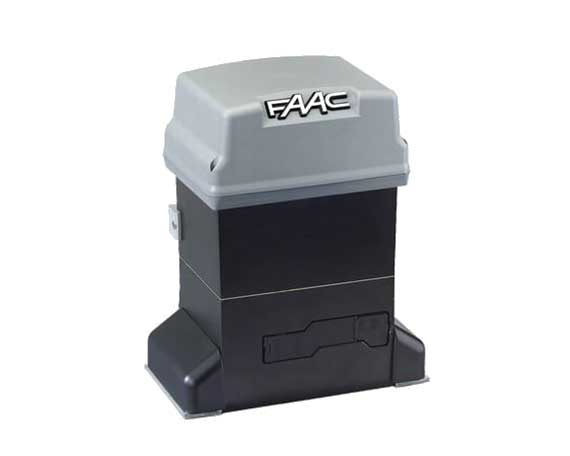

Older, shorter design of the FAAC 746 motor
Previous FAAC 746 Design

Elegant & Secure Swing Gate Motors

FAAC 415 Swing Gate Operator 24V Singapore

FAAC 415 / 415 L

Catalog IconDownload Specifications

A popular and robust electro-mechanical operator for residential swing gates. The FAAC 415 is renowned for its smooth, quiet operation and long-lasting performance, making it a perfect choice for private homes and driveways.

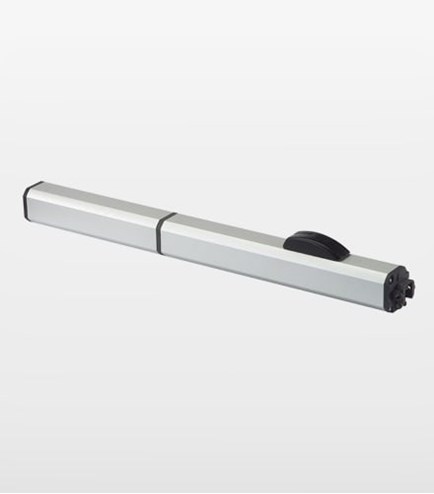

FAAC 400 Hydraulic Swing Gate Operator

FAAC 400

Catalog IconDownload Specifications

For the most demanding applications, including high-security sites and extra-large or heavy ornamental swing gates, we have proven experience installing the powerful FAAC 400 hydraulic system. This model is trusted for its exceptional strength, durability, and ability to handle the most challenging installations.

Specialists in High-Security & Custom FAAC Installations

Our technical expertise has made us the trusted choice for projects with the highest security requirements. We have successfully designed and installed specialized FAAC systems for sensitive locations such as government facilities, embassies, and the private residences of high-profile individuals, where absolute reliability and discretion are paramount.

Our FAAC Workmanship in Action

Below are examples of our professional FAAC installations across Singapore.

Double Leaf Sliding Gate with FAAC 844
Swing Gate with FAAC 415
Single-Sided Bi-Fold Gate with FAAC 415
Safety Interlocking Feature with FAAC 746 and Viro Lock
Small Telescopic Gate with 2.6m Driveway Clearance (FAAC 746)
Triple Telescopic Sliding Gate with FAAC 746

A three-panel telescopic sliding gate driven by the FAAC 746, designed to provide a wider usable opening while reducing the rollback space required behind the gate.

Bi-Fold Gate with FAAC 415 Autogate System
FAAC 415 Replacing Existing Concealed Swing Gate System

For this replacement project, the existing concealed motors were isolated and left in the ground while a new FAAC 415 arm-type system was installed above ground. This avoided hacking and make-good works to the existing motor recesses while providing a more accessible setup for future servicing.

How to Manually Override a FAAC Autogate

If there is a power failure or your autogate system is unable to operate automatically, FAAC gate motors include a manual release / override function. Below are examples showing how the manual override works for both FAAC swing and sliding gate systems.

Manual Override for FAAC 415 / 415L Swing Gate Motor

Example of how to manually release a FAAC swing gate motor during a power failure or when the swing gate needs to be operated by hand. The motor shown in this video is the FAAC 415L, and the manual release method is similar for FAAC 415 / 415L swing gate systems.

Manual Override for FAAC 746 / 844 Sliding Gate Motor

Example of how to manually release a FAAC sliding gate motor so the sliding gate can be moved by hand when required. The motor shown in this video is the FAAC 844, and the manual release concept is similar for FAAC 746 / 844 sliding gate systems.

Looking for a Proper FAAC Autogate Specialist?

Whether it is a new FAAC installation, replacement motor, repair or intercom integration, we help assess the gate condition, site wiring and safety requirements before recommending the right setup.

ENQUIRE / BOOK SITE ASSESSMENT

Frequently Asked Questions about FAAC Systems

Why do you recommend FAAC autogate systems?

FAAC is a world-renowned Italian brand known for its exceptional engineering, durability, and performance. We recommend FAAC for projects where reliability and long-term value are the top priorities, especially for heavy gates or high-traffic areas.

Which FAAC model is right for my property?

The best model depends on the type (sliding or swing), size, and weight of your gate, as well as your usage patterns. Contact us for a free on-site consultation, and our experts will assess your property and recommend the perfect FAAC solution.

What does "soft start and stop" mean for a FAAC gate?

"Soft start and stop" means the gate motor doesn't just jolt into action at full speed. It gently accelerates to its normal speed and then smoothly decelerates before closing. This has three major benefits: it makes the gate operation much quieter, it significantly reduces the mechanical stress on the motor and the gate itself (extending its lifespan), and it provides a more elegant, high-end look and feel.

What is the "pedestrian opening" feature?

This is a convenience feature that allows you to open the gate only partially—just wide enough for a person to walk through. It's perfect for when you're leaving on foot, as it's faster and reduces wear and tear on the motor compared to a full opening cycle. It's typically activated by a separate button on your remote control.

What happens if there is a power failure?

All FAAC systems include a secure manual release mechanism. In the event of a power outage, you can use a key to disengage the motor and operate the gate manually until power is restored.

How often should I service my FAAC autogate system?

To ensure peak performance and extend the life of your motor, we recommend a professional inspection and servicing every 6–12 months. Regular maintenance helps prevent issues and keeps your gate running smoothly.

Can you repair my existing FAAC motor?

Yes. Our technicians are experienced in troubleshooting and repairing a wide range of FAAC models, including older ones like the 740 and 741. We can diagnose issues and source genuine parts to extend the life of your system.

Can I integrate my FAAC system with an intercom?

Absolutely. We can seamlessly integrate your FAAC autogate with an intercom system, allowing you to open the gate for visitors directly from an app on your smartphone, no matter where you are.

How long does it take to install a FAAC system?

A standard installation is typically completed within 1–2 days. The exact timeline depends on site conditions and wiring requirements, and we will provide a clear schedule during our consultation.

How much does a FAAC autogate installation cost?

The cost depends on the specific FAAC motor chosen, the size and weight of your gate, and the complexity of the installation. We provide detailed, customised quotations after a free on-site assessment.

Do you install the metal gate as well?

While we specialize in the automation system, we partner with professional metal gate fabricators. This allows us to provide a seamless, all-in-one service for both a high-quality custom gate and a reliable FAAC motor installation.
